Product details:

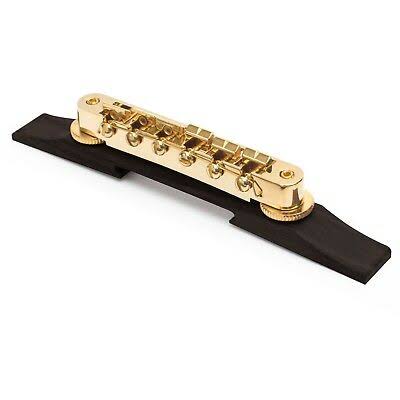

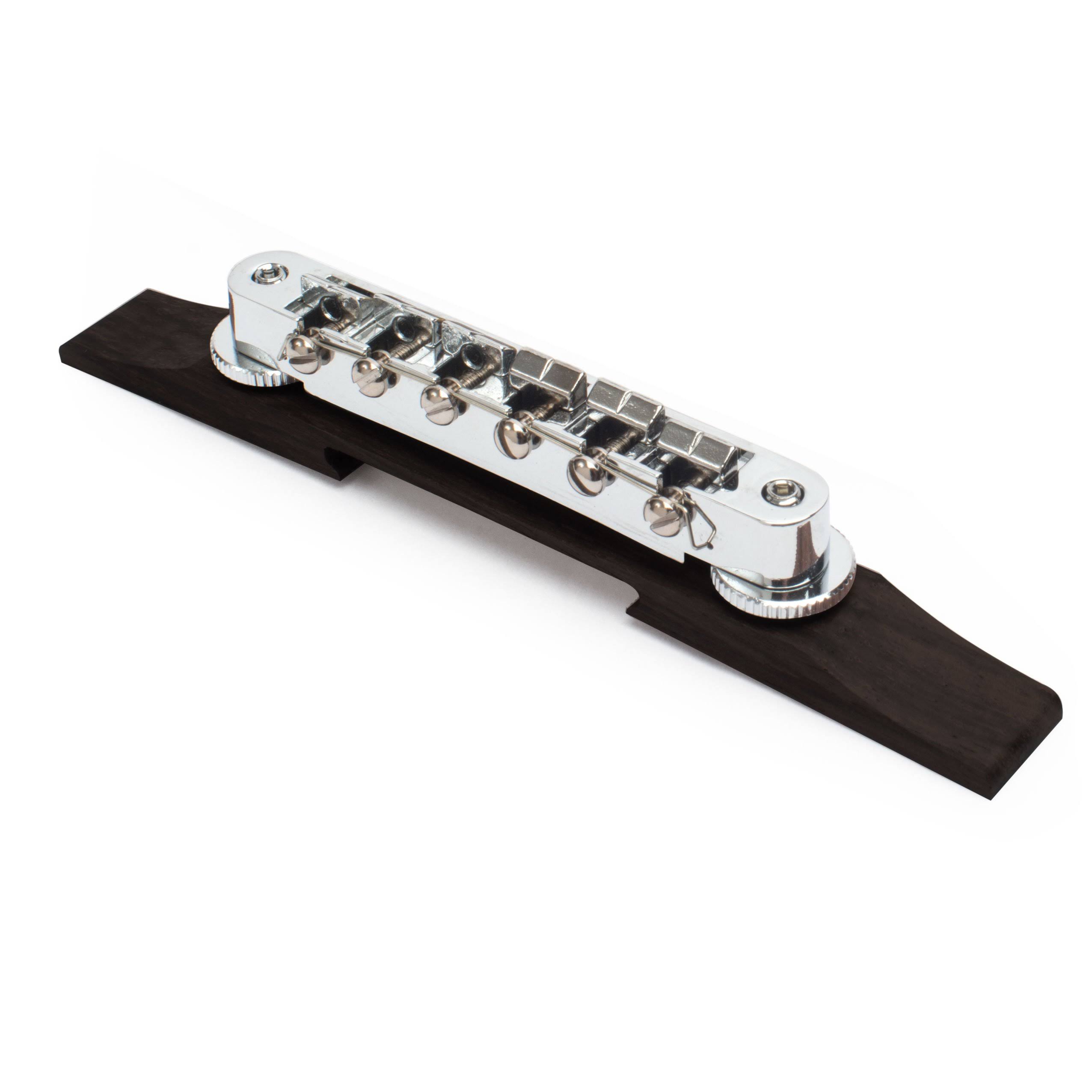

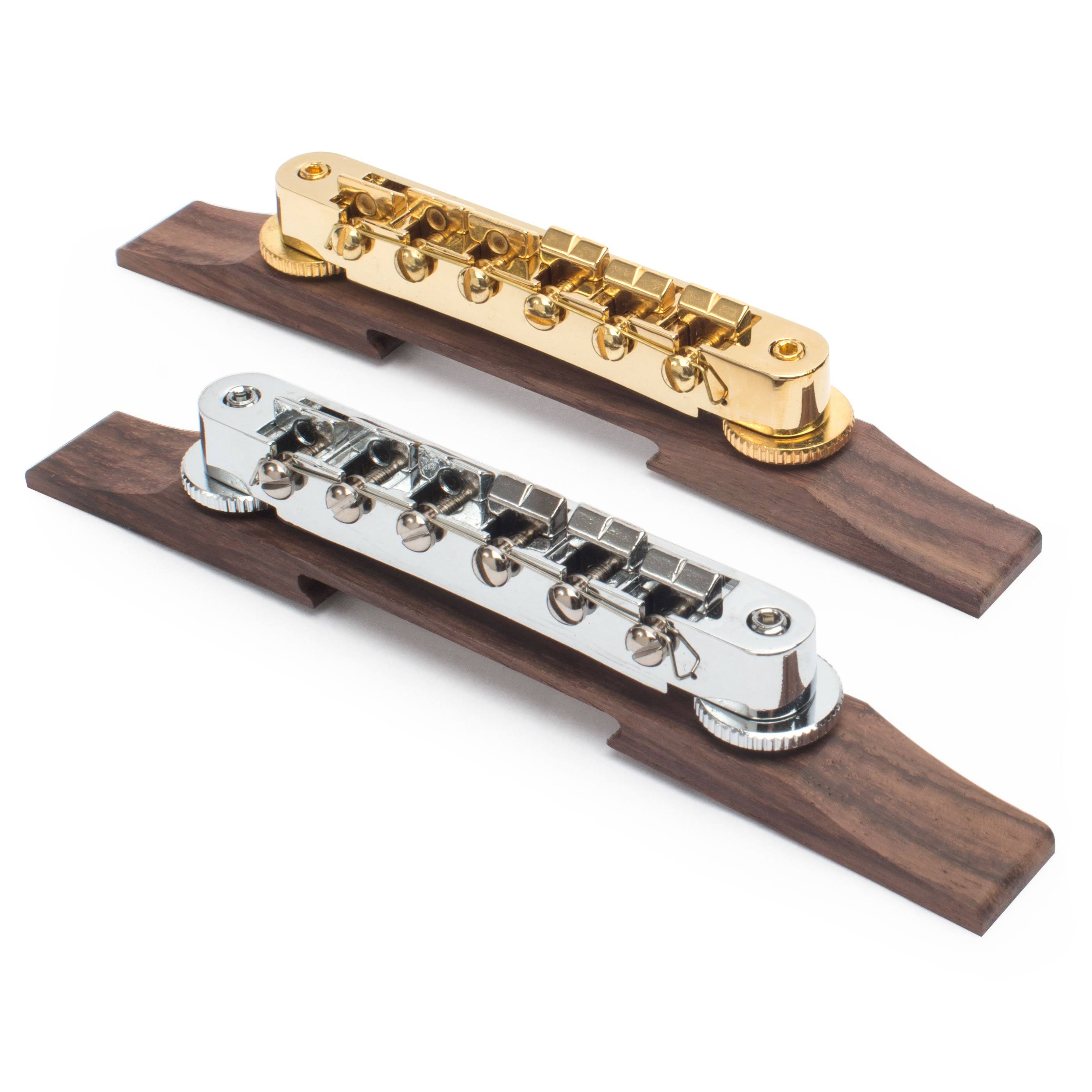

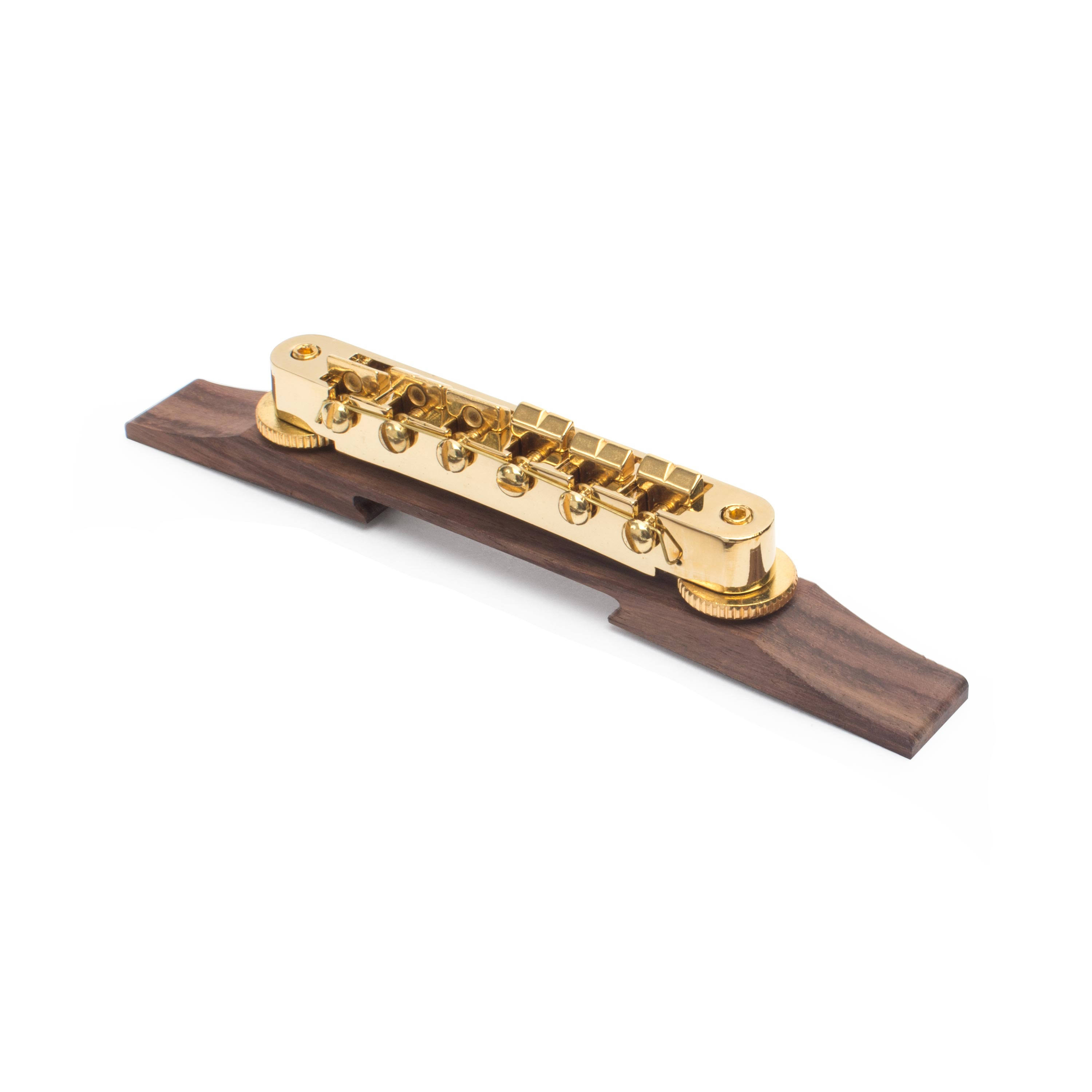

It's the ideal upgrade for more accurate intonation on archtop and semi-hollow electrics. The height is thumbwheel-adjustable from approximately 7/8 inch to 1-1/4 inch (22.23mm to 31.75mm). Saddles are pre-slotted and adjustable to set accurate string intonation. Measurements: String spread: 2-1/32 inch (51.59mm) Saddle radius: 14 inch (356mm) Post spacing: 2-29/32 inch (73.82mm) Post threads: M4 x 0.7 About bridge & tailpiece measurements: String spread is the distance between the centers of the outer strings on a bridge or tailpiece. Saddle radius determines the arc formed by all the individual saddle heights, and is similar to the measurement of a fretboard. Stud/post spacing is the distance between the centers of the mounting posts of a bridge or 'stop' tailpiece.
